FOR SINGLE SLIDE GATES UP TO 24 FT. ONLY!
This dynamic compact operator can be mounted various ways including concrete, mounting post or existing mounting pad. Additionally, this kit includes an internal friction brake that locks the gate in the closed position. Also, features chain release for manual gate operation. Works for chain link, tube, panel, wood, vinyl and ornimental gates. This unit is backed by an 18 month warranty from Mighty Mule.

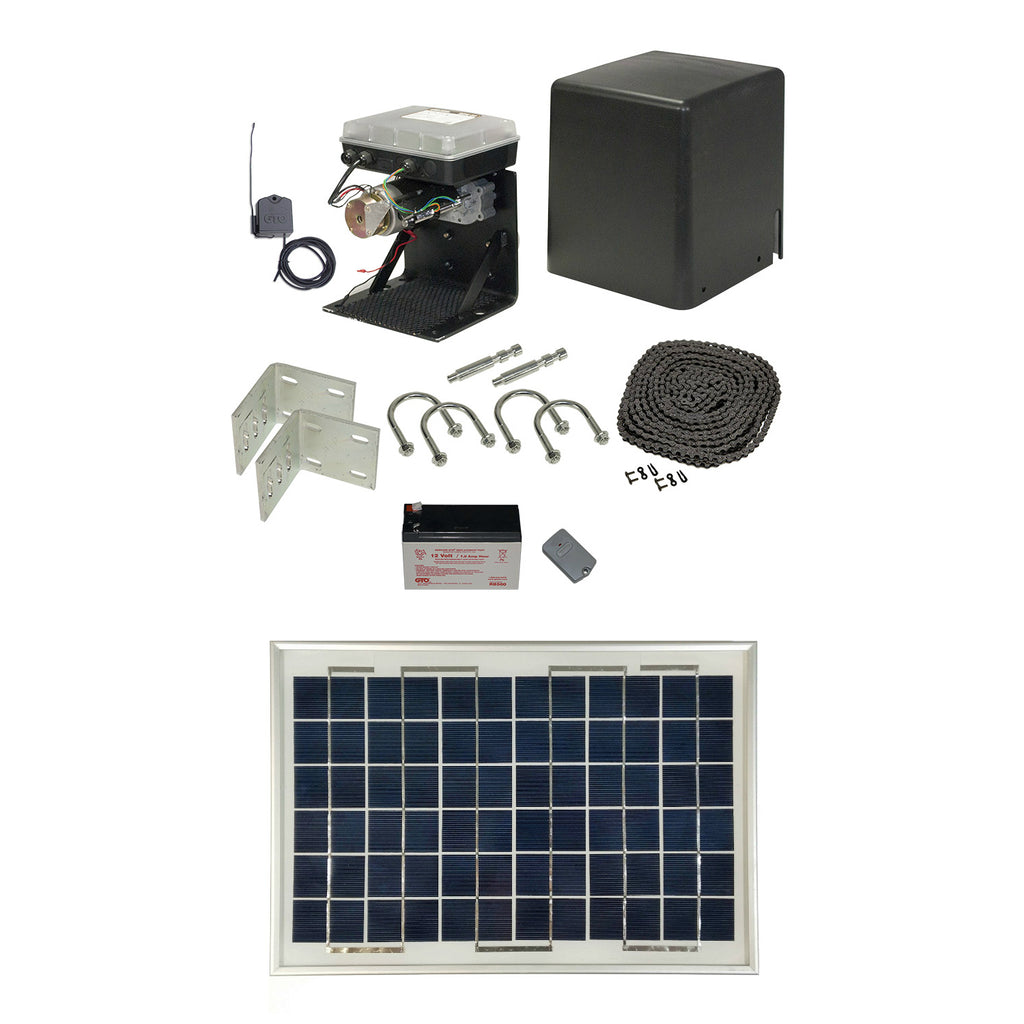

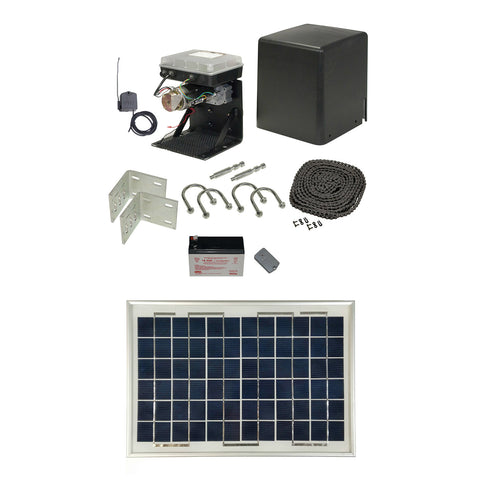

Kit Includes:
- 1 Transmitters (FM135)
- 110V AC Transformer (Cannot be used simultaneously with solar panel)
- 1 Battery (second battery recommended for solar installations, sold separately) (FM150)
- Control Box
- 25' Drive Chain (R4487)
- Includes all required brackets, mounting hardware and installation manual.
- Solar Made Solar Panel w/ 8 ft. Wires
- Solar Panel Mounting Bracket w/ Hardware (Solar Made #SGF-L-Bracket)
You may also need these items before you begin the installation:
- Low voltage wire (RB509) will be needed to run the (110volt AC) plug-in transformer to the opener control board; length depends upon the distance between the transformer power supply and the opener arm. Solar Compatible.
- A second battery is recommended for solar installations.
