Home Soltronix Solar Panels PowerFilm Soltronix RP-32F13.7V 100 Watt Solar Panel w/ Charge Controller
rp-32f13_7v

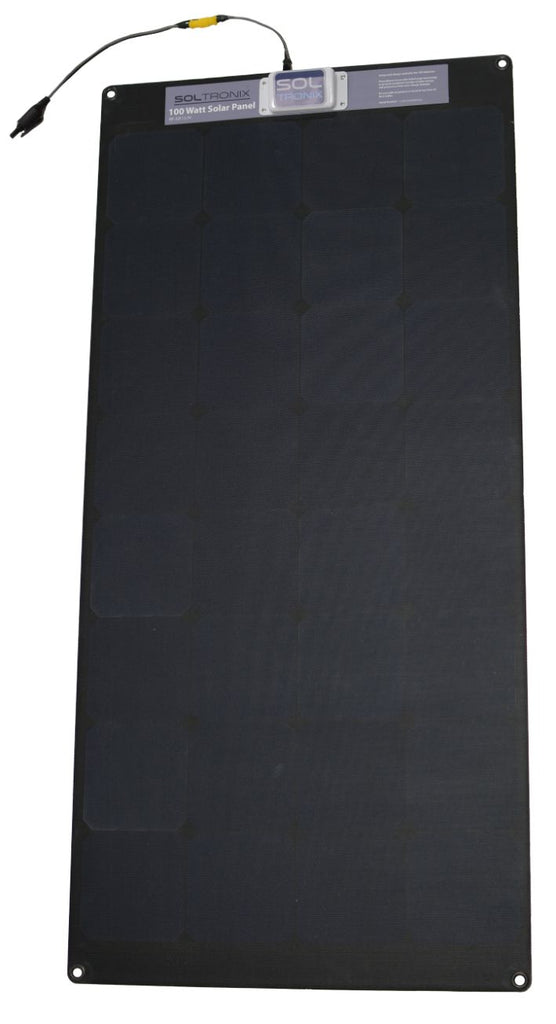

PowerFilm Soltronix RP-32F13.7V 100 Watt Solar Panel w/ Charge Controller

SKU: RP-32F13.7V
  • Sale
  • $369.98
  • 1 available

The Soltronix 100W Semi-Flexible Solar Panel brings together PowerFilm’s 30 years in the solar industry with custom solutions using SunPower-designed monocrystalline (c-Si) solar cells.

The PowerBoost series of charge controllers utilize high-efficiency DC-DC converters and a proprietary power point tracking system to optimize the power collected from the solar panel and efficiently charge a battery.

The PowerBoost will provide the most power into a battery and extend the battery’s lifetime. This charge controller designed specifically for use with solar and will not overcharge a battery like with 3 stage chargers connected to solar modules.

Leveraging our deep expertise in custom encapsulations, varied substrates, and total electronics, The Soltronix 100 Watt Solar Panel provides unsurpassed efficiency delivering more power to your system.

How the solar panel works:

  1. Place the solar panel in the sun.

  2. Connect to a 12V battery using the included 15 ft. Extension Cord with O-ring Connectors (RA-11) for charging and power storage.

  3. Optionally, the charger can be connected directly to a 12V battery for battery charging and power storage.

What's in the package:

  • 100W Solar Panel

  • 15 ft. Extension Cord with O-ring Connectors

Best Uses:

  • 12V battery charging

Suggested Accessories:

  • 15 ft. Extension Cord with Alligator Clips (RA-8)

Power Specifications:

  • Panel output to PowerBoost Integrated Charge Controller

    • Nominally 100W

  • PowerBoost Integrated Charge Controller Output to Battery

    • Charges 12V battery (flooded and AGM)

    • Charging voltage 13.8V float, 14Voc

    • Charging efficiency 88-91%

    • Maximum voltage rating on terminals 16V

    • Effective power to battery 90W

Additional Charge Controller Specifications:

  • Protection

    • Reverse polarity

    • ESD capability (AEC-Q101): human body model: class H3B: > 8 kV

    • Reverse leakage

Physical Specifications:

  • Dimensions

    • 44.5 x 20.9 x 0.1 (Inches)

    • 1,130.3 x 530.9 x 2.5 (mm)

    • Black fiberglass backing

  • Weight

    • 5.5 (lbs)

    • 2.5 (kg)

Environmental Specifications:

  • Temperature Coefficient

    • Voltage: -1.8mV/C

    • Power: -0.32%/C

  • Storage temperature: -40 to 85C

  • Operating temperature: -40 to 60C
