PowerFilm SP4.2-37 Solar Module - 4.2Volts, 22mA

SKU: SP4.2-37
  • Sale
  • Regular price $4.84


The Classic Application Series offer a new opportunity to solve the old problem of limited power for wireless electronics designed for portable and remote applications. Classic Application panels are lightweight, paper thin, and durable.

Their ultra-thin profile enables them to be easily integrated into devices for solar recharging or for direct power. Panels have been specifically developed to recharge a variety of common battery sizes. These panels do not have a UV-stabilized surface, but are suitable for intermittent outdoor use.

Electrical Specifications:

Full Sun

  • Power: 92mW

  • Operating Voltage: 4.2V

  • Current: 22mA

1/4 Sun

  • Power: 21mW

  • Operating Voltage: 4.2V

  • Current: 5.0mA

All Levels

  • Average Voc: 5.9V

  • Maximum Voc: 6.5V

  • Isc: 28mA

Physical Specifications:

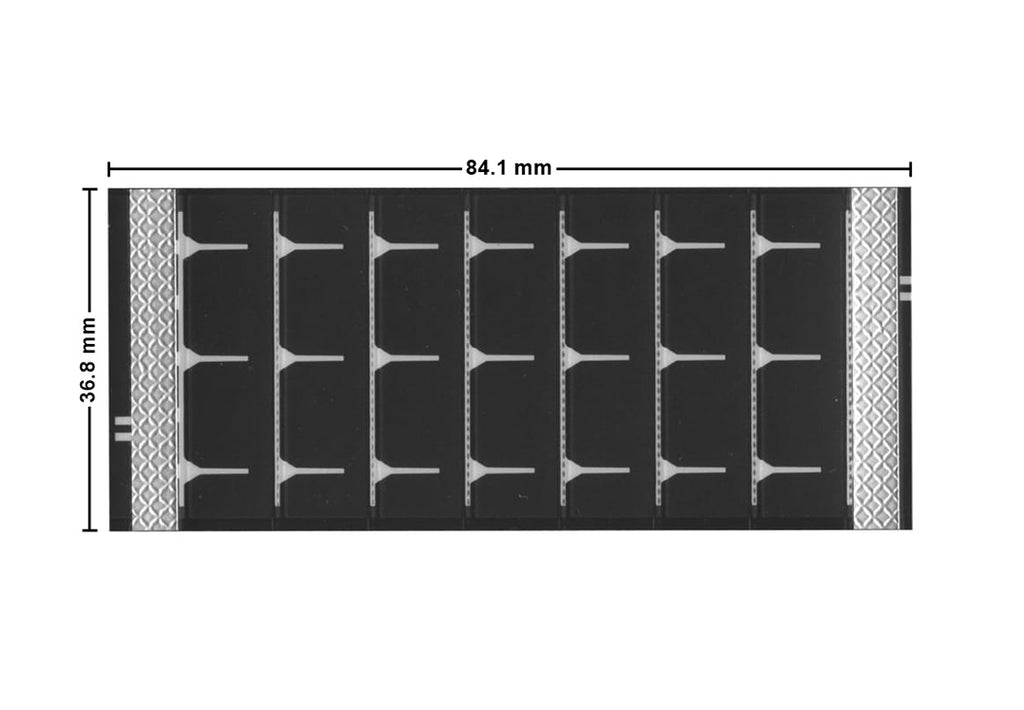

  • Dimensions: 84.0 x 36.5 (mm) / 3.31 x 1.44 (in)

  • Weight: 0.03oz / 0.85g

  • Thickness: 0.22mm

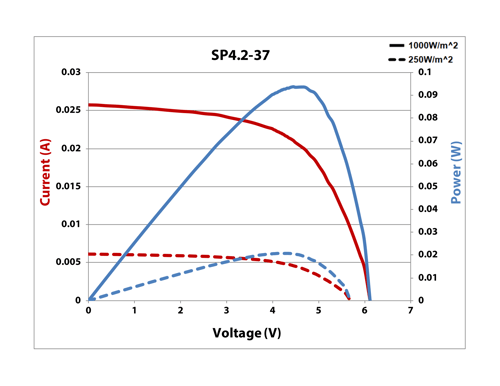

IV Curve

SP4.2-37 IV Curve 25% & Full Sun
