PowerFilm MP3-37 Solar Module - 3.0Volts, 50mA

SKU: MP3-37
  • Sale
  • Regular price $2.81

The Classic Application Series offer a new opportunity to solve the old problem of limited power for wireless electronics designed for portable and remote applications. Classic Application panels are lightweight, paper thin, and durable.

Their ultra-thin profile enables them to be easily integrated into devices for solar recharging or for direct power. Panels have been specifically developed to recharge a variety of common battery sizes. These panels do not have a UV-stabilized surface, but are suitable for intermittent outdoor use.

Electrical Specifications:

Full Sun

  • Power: 150mW

  • Operating Voltage: 3.0V

  • Current: 50mA

1/4 Sun

  • Power: 34mW

  • Operating Voltage: 3.0V

  • Current: 11.3mA

All Light Levels

  • Average Voc: 4.1V

  • Maximum Voc: 4.6V

  • Isc: 63.0mA

Physical Specifications:

  • Dimensions: 114.0 x 36.5 (mm) / 4.49 x 1.44 (in)

  • Weight: 0.04oz / 1.11g

  • Thickness: 0.22mm

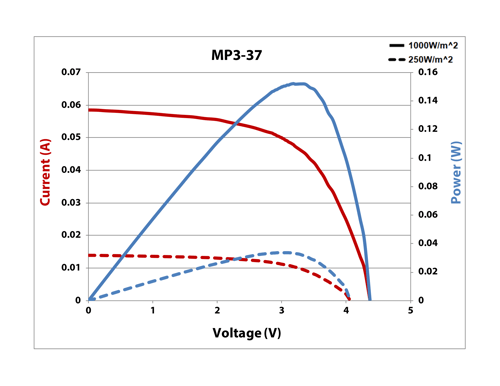

IV Curve

MP3-37 IV Curve 25% & Full Sun
