The Classic Application Series offer a new opportunity to solve the old problem of limited power for wireless electronics designed for portable and remote applications. Classic Application panels are lightweight, paper thin, and durable.
Their ultra-thin profile enables them to be easily integrated into devices for solar recharging or for direct power. Panels have been specifically developed to recharge a variety of common battery sizes. These panels do not have a UV-stabilized surface, but are suitable for intermittent outdoor use.

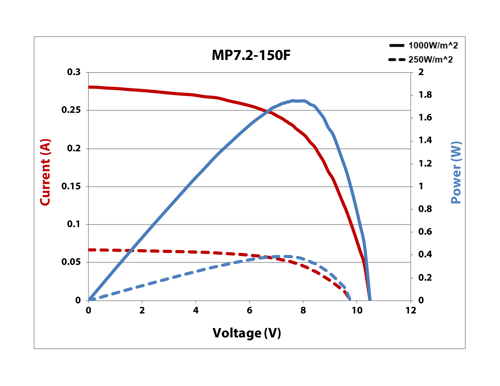

Electrical Specifications:
Full Sun
-
Power: 1.73W
-
Operating Voltage: 7.2V
-
Current: 240mA
1/4 Sun
-
Power: 389mW
-
Operating Voltage: 7.2V
-
Current: 54.0mA
All Levels
-
Average Voc: 10.5V
-
Maximum Voc: 11.1V
-
Isc: 308mA
Physical Specifications:
-
Dimensions: 253.0 x 146.0 (mm) / 9.96 x 5.75 (in)
-
Weight: 1.01oz / 28.68g
-
Thickness: 0.61mm
