PowerFilm MP7.2-75F Solar Module - 7.2Volts, 100mA

SKU: MP7.2-75F
  • Sale
  • $11.99
  • Regular price $21.33
  • 1 available

The Classic Application Series offer a new opportunity to solve the old problem of limited power for wireless electronics designed for portable and remote applications. Classic Application panels are lightweight, paper thin, and durable.

Their ultra-thin profile enables them to be easily integrated into devices for solar recharging or for direct power. Panels have been specifically developed to recharge a variety of common battery sizes. These panels do not have a UV-stabilized surface, but are suitable for intermittent outdoor use.

Electrical Specifications:

Full Sun

  • Power: 864mW

  • Operating Voltage: 7.2V

  • Current: 120mA

1/4 Sun

  • Power: 194mW

  • Operating Voltage: 7.2V

  • Current: 27.0mA

All Levels

  • Average Voc: 10.5V

  • Maximum Voc: 11.1V

  • Isc: 154mA

Physical Specifications:

  • Dimensions: 253.0 x 73.0 (mm) / 9.96 x 2.87 (in)

  • Weight: 0.38oz / 11.04g

  • Thickness: 0.61mm

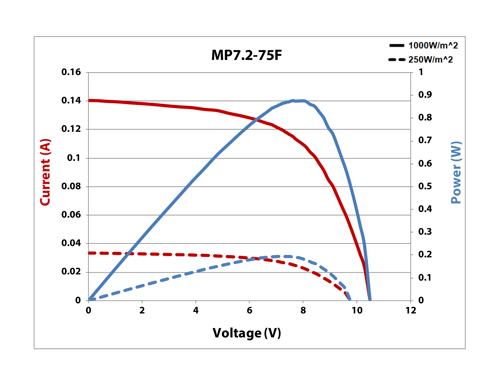

IV Curve

MP7.2-75F IV Curve 25% & Full Sun
