The WeatherPro Series is the perfect choice for permanent outdoor applications that are directly exposed to the elements.
The especially rugged construction of these panels includes a UV-stabilized surface, extra edge seal for weather protection, and tin-coated copper leads that extend from the panel.
Coating the leads with an RTV silicon compound can provide a tightly sealed package.

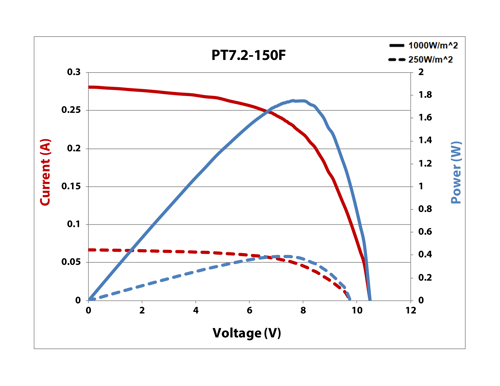

Electrical Specifications:
Full Sun
-
Power: 1.73W
-
Operating Voltage: 7.2V
-
Current: 240mA
1/4 Sun
-
Power: 389mW
-
Operating Voltage: 7.2V
-
Current: 54.0mA
All Levels
-
Average Voc: 10.5V
-
Maximum Voc: 11.1V
-
Isc: 308mA
Physical Specifications:
-
Dimensions: 283.0 x 172.0 (mm) / 11.14 x 6.77 (in)
-
Weight: 1.45oz / 49.21g
-
Thickness: 1.12mm
