PowerFilm PT15-150 Solar Module - 15.4Volts, 100mA

SKU: PT15-150
  • Sale
  • $36.99
  • Regular price $47.96
  • 5 available

The WeatherPro Series is the perfect choice for permanent outdoor applications that are directly exposed to the elements.

The especially rugged construction of these panels includes a UV-stabilized surface, extra edge seal for weather protection, and tin-coated copper leads that extend from the panel.

Coating the leads with an RTV silicon compound can provide a tightly sealed package.

Electrical Specifications:

Full Sun

  • Power: 1.54W

  • Operating Voltage: 15.4V

  • Current: 100mA

1/4 Sun

  • Power: 347mW

  • Operating Voltage: 15.4V

  • Current: 22.5mA

All Levels

  • Average Voc: 19.0V

  • Maximum Voc: 22.2V

  • Isc: 128mA

Physical Specifications:

  • Dimensions: 283.0 x 172.0 (mm) / 11.14 x 6.77 (in)

  • Weight: 1.09oz / 31.13g

  • Thickness: 1.12mm

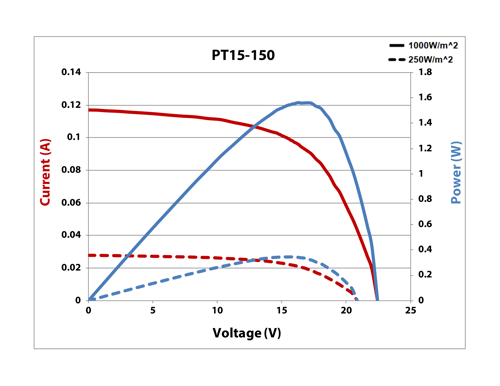

IV Curve

PT15-150 IV Curve
