PowerFilm PT15-300 Solar Module - 15.4Volts, 200mA

SKU: PT15-300
  • Sale
  • $56.99
  • Regular price $79.96
  • 4 available

The WeatherPro Series is the perfect choice for permanent outdoor applications that are directly exposed to the elements.

The especially rugged construction of these panels includes a UV-stabilized surface, extra edge seal for weather protection, and tin-coated copper leads that extend from the panel.

Coating the leads with an RTV silicon compound can provide a tightly sealed package.

Electrical Specifications:

Full Sun

  • Power: 3.08W

  • Operating Voltage: 15.4V

  • Current: 200mA

1/4 Sun

  • Power: 693mW

  • Operating Voltage: 15.4V

  • Current: 45.0mA

All Levels

  • Average Voc: 19.0V

  • Maximum Voc: 22.2V

  • Isc: 256mA

Physical Specifications:

  • Dimensions: 283.0 x 313.0 (mm) / 11.14 x 12.32 (in)

  • Weight: 3.14oz / 89.30g

  • Thickness: 1.12mm

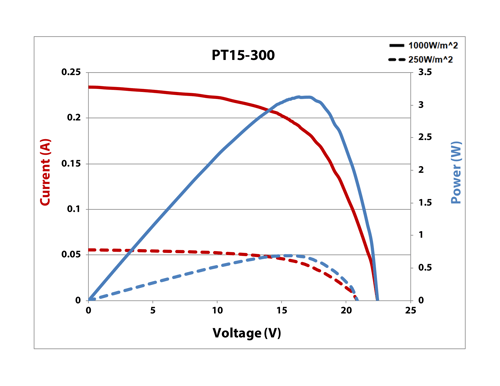

IV Curve

PT15-300 IV Curve
