PowerFilm PT15-75 Solar Module - 15.4Volts, 50mA

SKU: PT15-75
  • Sale
  • $23.99
  • Regular price $31.96
  • 2 available

The WeatherPro Series is the perfect choice for permanent outdoor applications that are directly exposed to the elements.

The especially rugged construction of these panels includes a UV-stabilized surface, extra edge seal for weather protection, and tin-coated copper leads that extend from the panel.

Coating the leads with an RTV silicon compound can provide a tightly sealed package.

Electrical Specifications:

Full Sun

  • Power: 770mW

  • Operating Voltage: 15.4V

  • Current: 50mA

1/4 Sun

  • Power: 173mW

  • Operating Voltage: 15.4V

  • Current: 11.3mA

All Levels

  • Average Voc: 19.0V

  • Maximum Voc: 22.2V

  • Isc: 64mA

Physical Specifications:

  • Dimensions: 283.0 x 99.0 (mm) / 11.14 x 3.90 (in)

  • Weight: 0.64oz / 18.40g

  • Thickness: 1.12mm

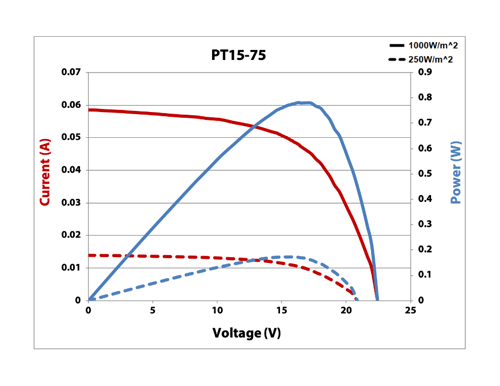

IV Curve

PT15-75 IV Curve
